Lab Topology

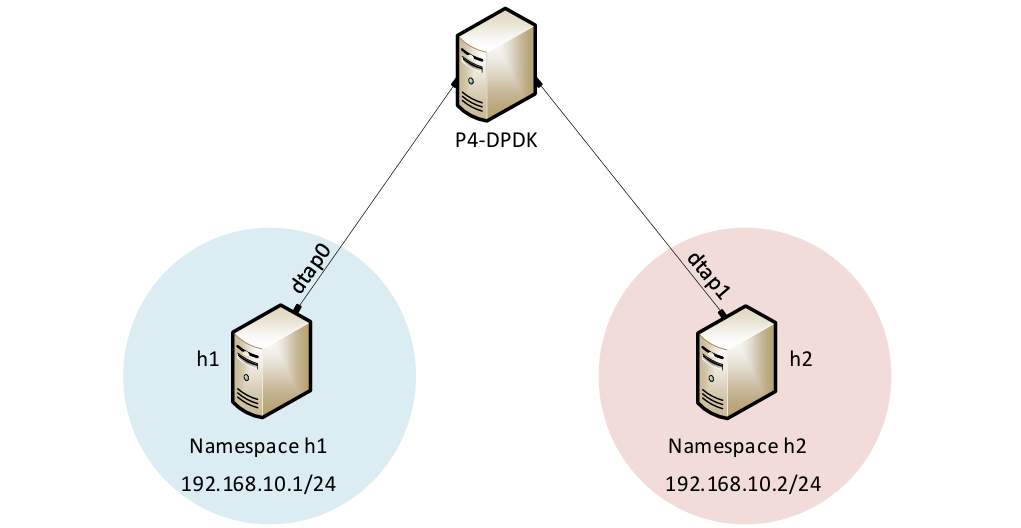

Consider Figure 6. Two network namespaces, h1 and h2, are linked to the running P4-DPDK pipeline, enablingconnectivity between two namespaces. The network environments of hosts h1 and h2 are isolated from each other and the root namespace.

../../../_images/64.png

Figure 6: Lab topology.

Lab Settings

Table 1 contains the credentials of the virtual machine used for this lab.

Table 2: Topology information.

Host

Interface

IP Address

Subnet

h1

dtap0

192.168.10.1

/24

h2

dtap1

192.168.10.2

/24
